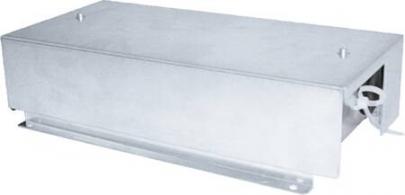

PANASONIC CZ-CAPBC2

Mini parallel til styring af kapasitet på indoor units, med 0-10 V. max 1 gruppe og 8 indendørs enheder. Connection with 3rd Party Controller CZ-CAPBC2 · Control and status monitoring is possible for individual indoor unit (1 group) · In addition to operation and stop, there is a digital input function for air speed and operation mode · Temperature setting and measuring of the indoor suction temperature can be performed from central monitoring · The analog input for demand of the outdoor capacity by 20 steps (from 40% to 120%) by 0-10V · The analog input for temperature setting is 0 to 10 V, or 0 to 140 Ohm · Power is supplied from the CZ-T10 terminal of the indoor units · Separate power supply also is possible (in case of suction temperature measuring) · Demand control 40% to 120% (5% steps) by 0-10V input signal · Temperature setting by 0-10 V or 0-140 O input signal · Room (inlet air) temp outlet by 4-20 mA · Mode select or/and ON/OFF control · Fan operation control · Operation status output/ Alarm output · Thermostat ON/OFF control
